Flexible Canvas Duct Connector Machine

Flexible Canvas Duct Connector Machine

Features Of Flexible Canvas Duct Connector Machine

•  Automatic Production Process: Adopts an integrated design of uncoiling, forming and cutting, realizing continuous automatic production of flexible canvas duct connectors, which greatly improves production efficiency and reduces manual operation intensity compared with traditional manual processing.
•  Precision Forming & Cutting: Equipped with high-precision forming molds and cutting system, it can accurately control the size and shape of flexible duct connectors, ensuring consistent product quality and smooth edges, meeting the high-standard requirements of HVAC pipeline connection.
•  Wide Material Adaptability: Compatible with various flexible materials such as canvas, non-woven fabric and composite fiber cloth, suitable for processing flexible duct connectors of different thicknesses and specifications to meet diverse project needs.
•  Intelligent Control System: Configured with PLC touch screen control system, which can easily adjust production parameters such as length, size and speed, with functions of automatic counting and fault diagnosis, making operation simple and intuitive, and reducing the learning cost of operators.
•  Stable & Durable Structure: The machine body adopts a heavy-duty welded frame structure with high rigidity, matched with wear-resistant forming parts, ensuring stable operation under long-term continuous production and extending the service life of the equipment.

  ---

  Technical Parameters

• Thickness of galvanized iron sheet：0.4-0.6mm
• Width of galvanized iron sheet：50-130mm
• Range of cloth consumables：about 12mm on both sides
• Range of iron consumables：20mm on both sides
• Width of fireproof cloth：80-630mm
• Width of final product：120-750mm
• Power：10kW
• Weight：3600kg
• Dimensions:the whole set of equipment needsto occupy an area of 3 meters wide and 13 meters long

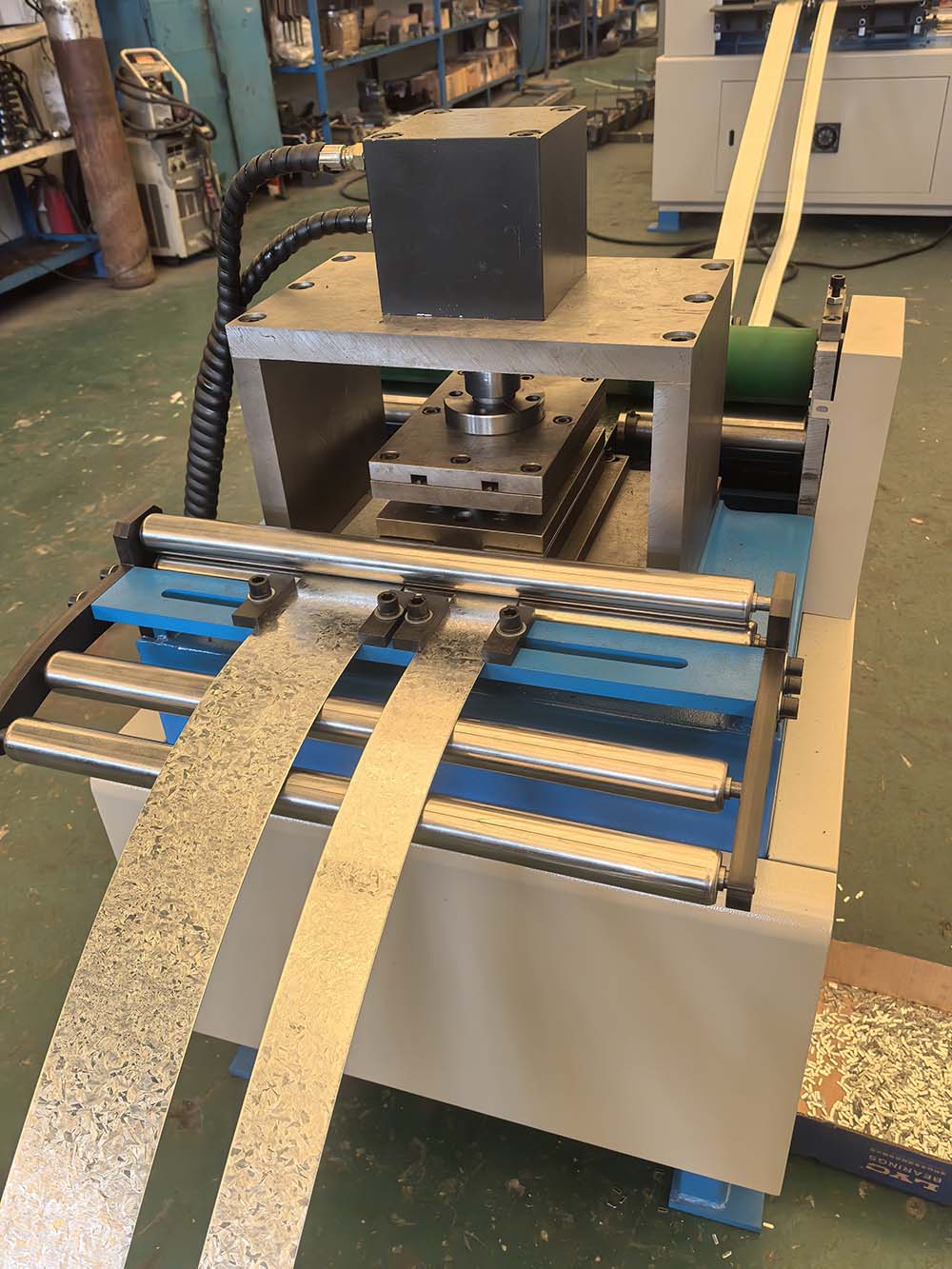

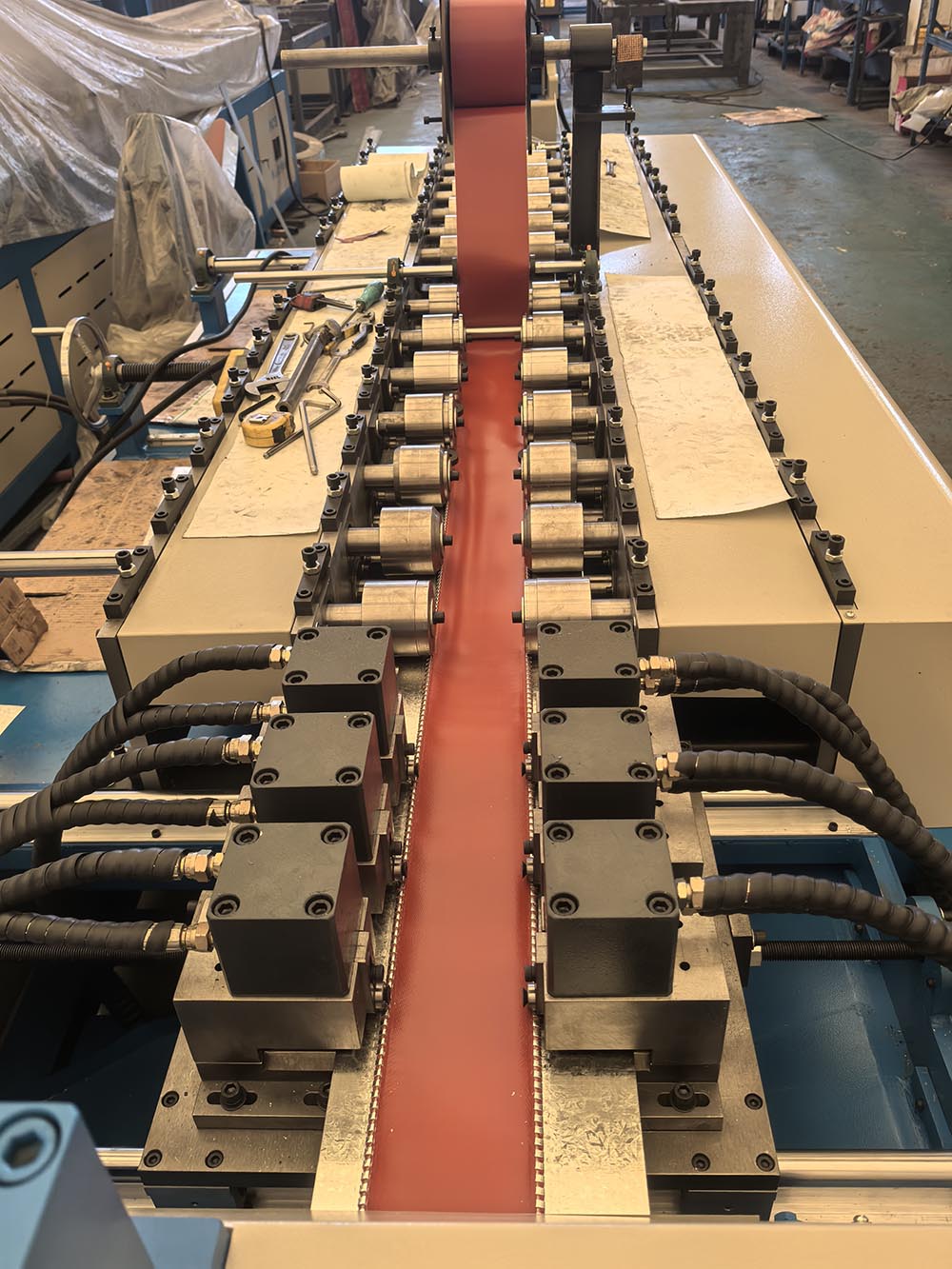

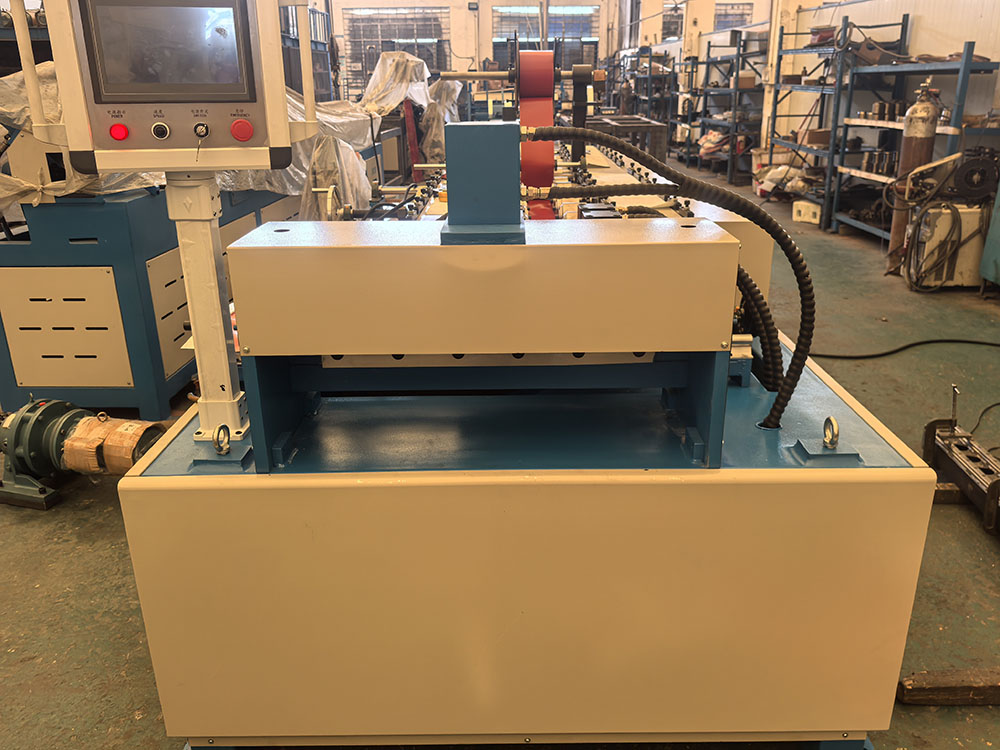

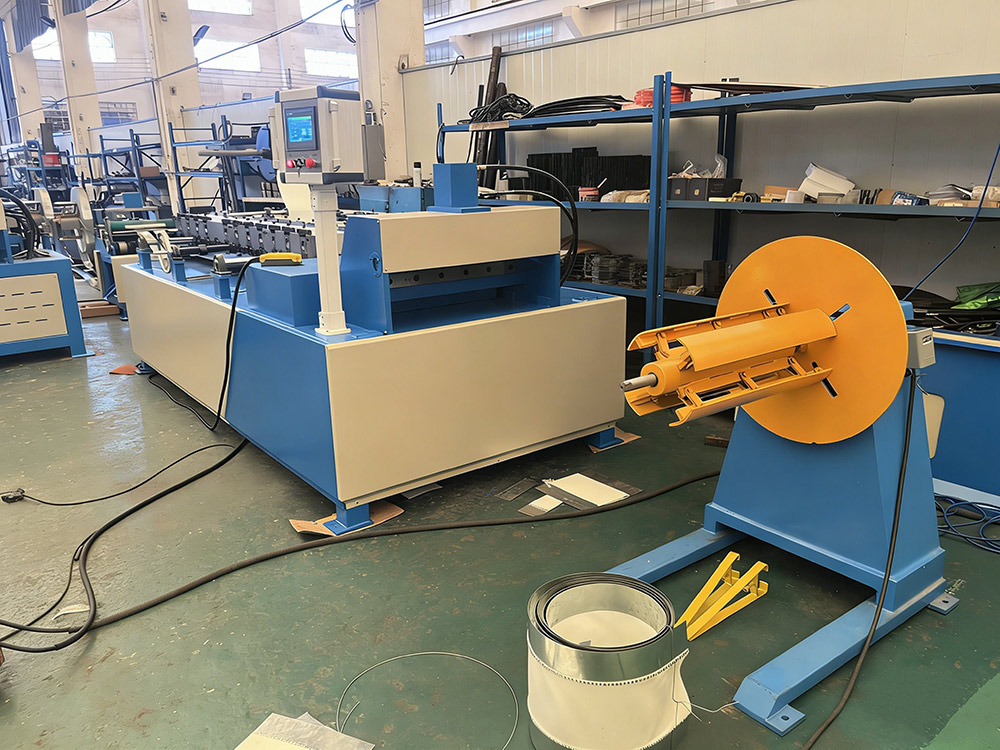

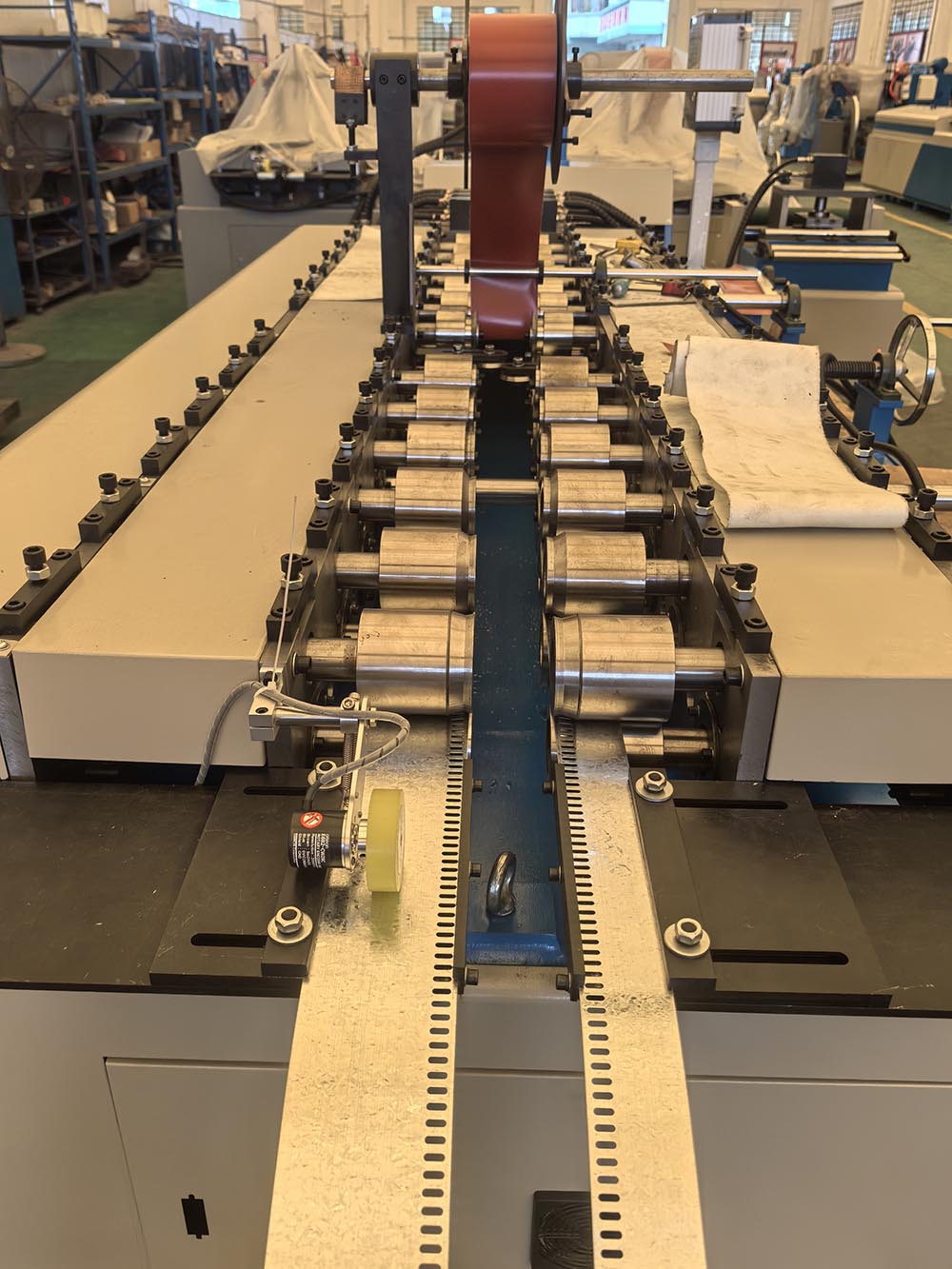

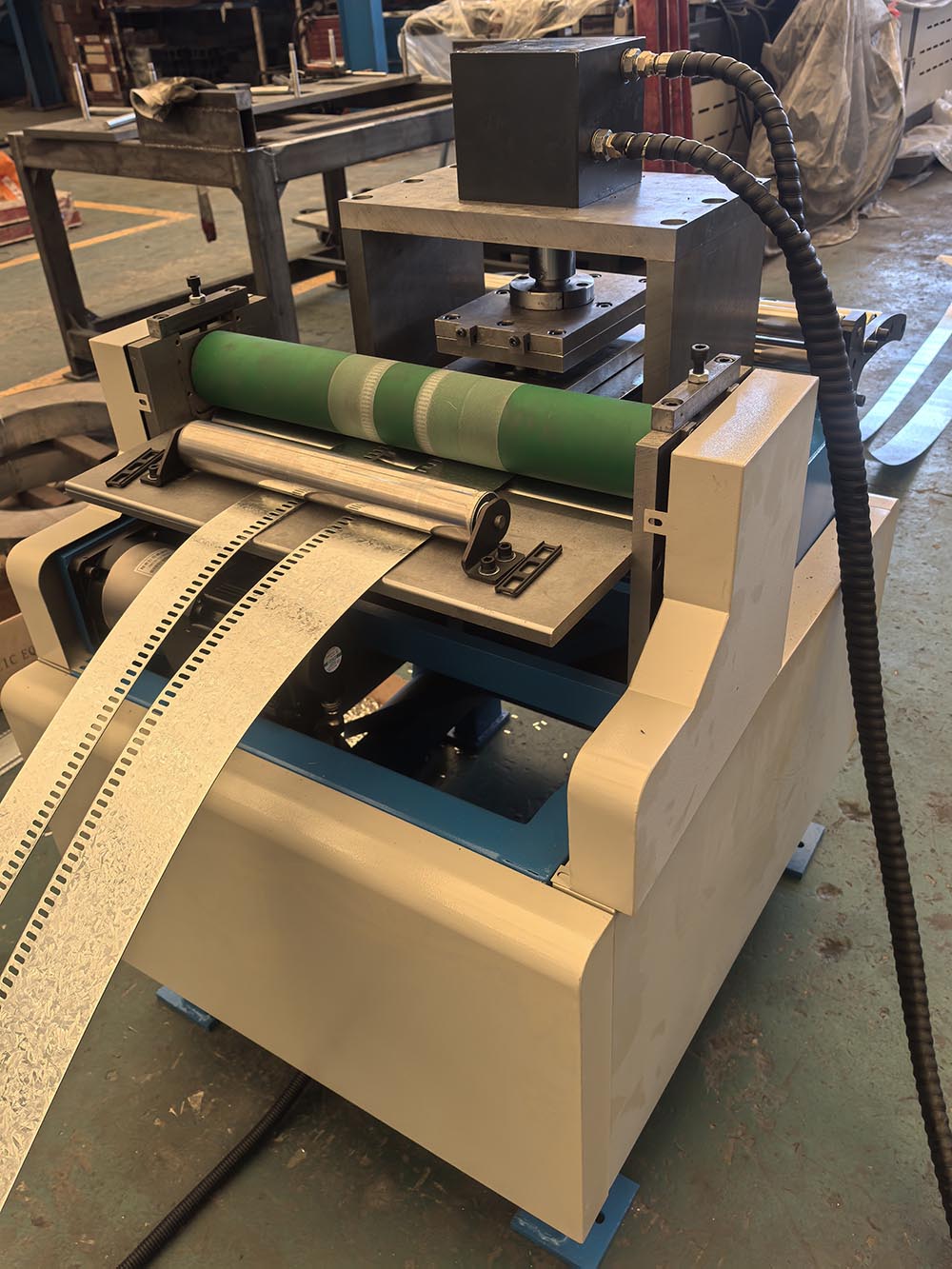

Real Photos

FAQ:

1. Are you manufacturer or trading company?

We are manufacturer.

2. What shall we do if don't know how to operate your machine?

We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.

 3.How about your machine quality?

HCY company is a mature brand in CHINA,through our 15 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.

4. What are your payment terms?

We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.

5.Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6.Do you accept customer Logo and customized ?

we accept kinds of customized ,including logo and machine .
